Pair and Manage Card Readers

Link to section


Square Reader for magstripe is automatically detected by the Mobile Payments SDK when inserted or removed from a device's connection port. Square Stand contains a built-in reader device and doesn't need an external paired reader to take payments. However, Square Reader for contactless and chip requires Bluetooth pairing. The Mobile Payments SDK's ReaderManager handles this pairing and provides ways to monitor changes in Square readers.

Did you know?

Physical reader devices cannot be used in the Square Sandbox. For testing purposes, you can use the Mock Reader UI to pair simulated readers and process mock payments with your application in the Square Sandbox.

Link to section

Settings Manager

The Mobile Payments SDK offers a preconfigured reader settings screen you can use in your application by calling SettingsManager.showSettings(). This screen includes two tabs. The Devices tab displays the model and connection status for readers paired to your application and includes a button for pairing a new reader. The About tab displays information about the Mobile Payments SDK, authorized location, and environment used to take payments. You can also use the SettingsManager to programmatically retrieve information about the current sdkEnvironment (either production or sandbox) and current sdkVersion.

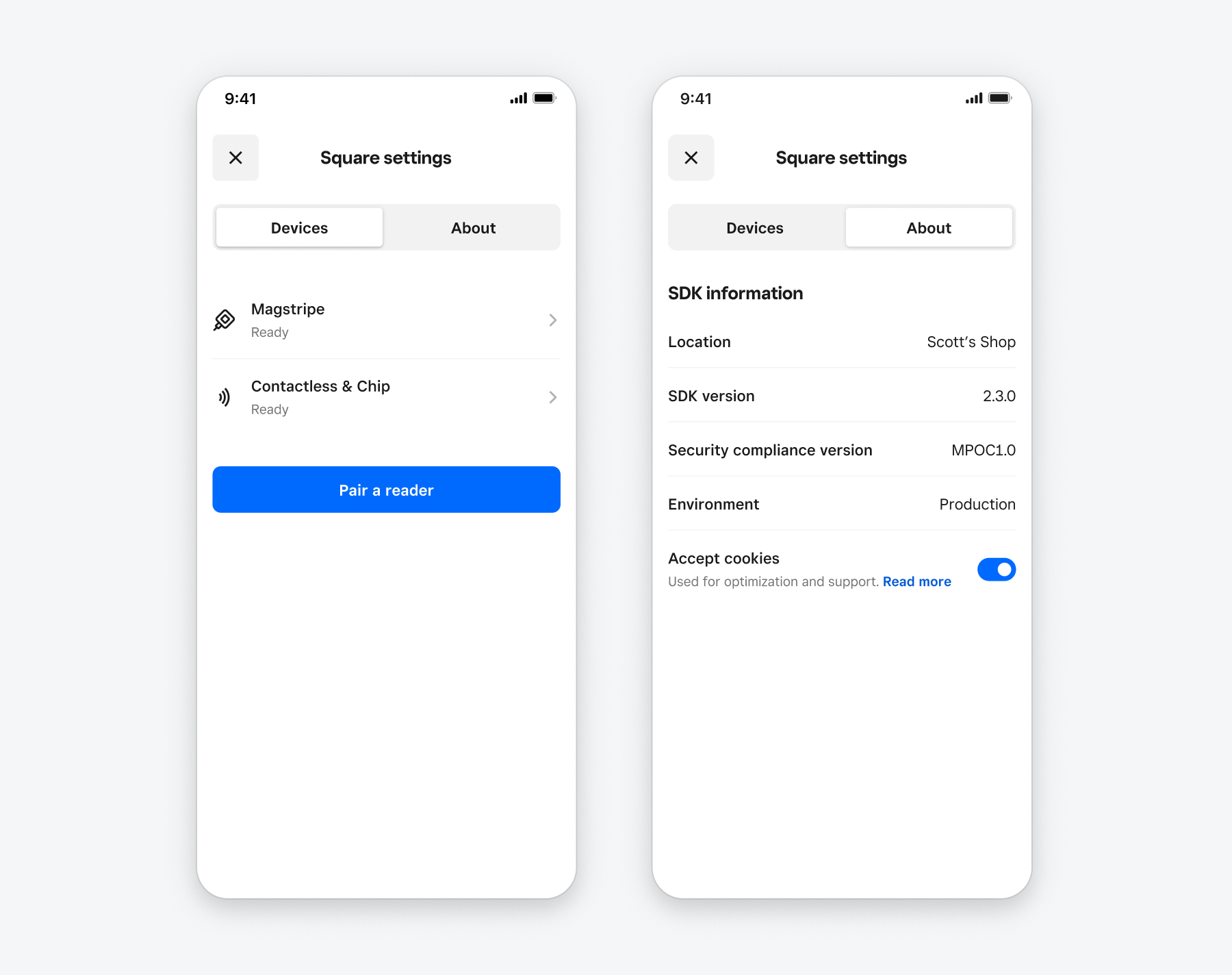

A graphic showing the Square-provided settings screen for the Mobile Payments SDK. The "Devices" and "About" tabs are shown

Link to section

Reader Manager

If you want more control over your reader pairing and management screens, you can create your own using information from the Mobile Payments SDK ReaderManager. This manager provides methods for pairing and forgetting readers, accessing information about a particular reader, and listening for reader status updates.

Link to section

Pairing a reader

Pair a new reader using ReaderManager.pairReader(). Only one reader pairing can be in progress at one time, so check the Boolean value ReaderManager.isPairingInProgress and only begin pairing if it's false. pairReader consumes a callback to notify your application when pairing completes. Use this callback to update waiting spinners or similar displays in your application and provide notifications to users based on whether reader pairing is successful.

The pairing callback is guaranteed to be called when pairing ends, even if no reader was successfully paired. When pairing completes, this callback's success value is a Boolean for whether a card reader paired. If the value is true a card reader was found, reported to the callback provided using setReaderChangedCallback, and added to the list of paired readers accessed with ReaderManager.getReaders(). A successful but false result indicates a canceled pairing attempt. If pairing fails for any reason, the error description contains a PairingErrorCode with details about the failure.

The Mobile Payments SDK also provides the setReaderChangedCallback, which is called when the state of a reader changes. Use this callback to notify your application when magstripe readers are inserted or removed, contactless and chip readers are paired or disconnected with Bluetooth, or the battery level passes certain thresholds.

Paired readers are remembered by the Mobile Payments SDK, so when a new card reader is paired to the application, it remains paired and present in the list of readers provided by ReaderManager.getReaders(). If your application wants to stop pairing before it completes, you can do so with the returned pairingHandle by calling pairingHandle.stop().

Link to section

Reader information

The ReaderInfo class provides information about Square readers paired with your application. These properties include:

  • The battery percentage and charging status.
  • The model (for example, contactless and chip or magstripe).
  • The serial number.
  • The firmware version.
  • The card entry methods supported by the reader (TAP, DIP, or SWIPE).

You can use this information to send notifications to users of your application when a reader is unpaired or its battery is low. You can create your own screens to display information about readers status or use a Square-provided settings screen for quick integration.

Link to section

Card entry methods

Different reader devices offer different card entry methods. For example, Square Reader for magstripe can only accept swiped cards, while Square Reader for contactless and chip can accept tapped or dipped cards. The card entry methods supported are available within a reader's ReaderInfo.supportedCardEntryMethods. However, this list isn't updated if the available entry methods change (for example, if the NFC connection to a contactless reader times out).

Your application should register a callback with PaymentManager.setAvailableCardEntryMethodChangedCallback to be notified when the available entries change. Before taking any payment, your application should query PaymentManager.getavailableCardEntryMethods() and display the available payment methods to customers as a prompt to swipe, insert, or tap their card to pay.

Link to section

Reader state

Your application can check ReaderInfo.state to learn information about contactless and chip readers and display updates and messages to users when readers are Connecting, UpdatingFirmware, or Disconnected or if a reader FailedToConnect.

If a reader's state is Ready, it's paired, connected, and able to accept card payments. For example, if you want to get the number of readers capable of taking payments, you can apply a filter to all connected readers.

fun getReaders() { val readerManager = MobilePaymentsSdk.readerManager() val readers = readerManager.getReaders() // Do something with the readers val availableReaders = readers.filter { it.state == Ready }.size val contactlessReaders = readers.filter { it.supportedCardEntryMethods.contains(CONTACTLESS) } val specificReader = readers.find { it.serialNumber == "4815162342LS815" } // Etc.. }
Link to section

Unpairing a reader

Paired contactless and chip readers are remembered by the Mobile Payments SDK. When a new card reader is paired to the application, it remains paired until forgotten with readerManager.forget(reader).

Link to section

Next steps

To test your application in the Square Sandbox without a physical Square Reader device, use the Mobile Payments SDK Mock Reader UI to simulate a reader and accept test payments. Otherwise, after you've paired a physical Square Reader device, you're ready to take payments in a production environment.
