Understanding Dynamic Schemas

Link to section

What is a dynamic schema?

A dynamic schema means the API's queryable data model is discovered at runtime rather than hard-coded into your application. Instead of knowing at development time what fields are available, your application queries the /v1/meta endpoint to learn the current structure, then builds queries accordingly.

This is fundamentally different from traditional REST APIs where you write code against a fixed set of known fields.

Link to section

Why dynamic schemas?

The Reporting API schema is backwards compatible — Square does not remove or rename fields in breaking ways. However, the schema does grow over time as new measures, dimensions, and cubes are added. Dynamic discovery lets your application automatically pick up these additions without redeployment.

Link to section

Architecture pattern: Discovery Layer

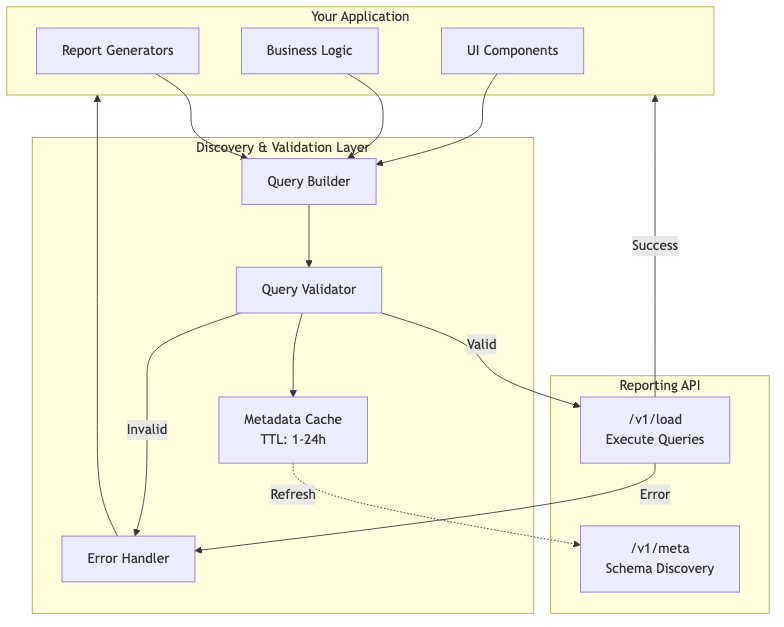

Implement a discovery layer that sits between your application logic and the API:

reporting-api-dynamic-schemas-discovery-layer

Layer Responsibilities:

  • Application Layer: UI, business logic, and reporting components
  • Discovery Layer: Metadata caching, query validation, and error handling
  • API Layer: Schema discovery and query execution
Link to section

Key principles

  1. Discover on startup: Fetch metadata on application startup or periodically to surface new fields
  2. Cache metadata appropriately: Balance freshness with API load (1-24 hour TTL)
  3. Build dynamic UIs: Populate options from metadata, not hard-coded lists
  4. Validate before executing: Check queries against cached metadata to catch errors early
  5. Refresh after errors: If a query fails with "not found", invalidate cache and retry

For implementation details — caching code, validation patterns, and parsing examples — see Metadata Discovery.

Link to section

Schema change scenarios

ChangeClient ImpactAction
Measure addedNoneDiscover automatically
Dimension addedNoneDiscover automatically
Measure removedQueries using it failValidate queries against metadata before execution
Dimension removedQueries using it failValidate queries against metadata before execution
Cube/view addedNoneDiscover automatically
Cube/view removedAll queries to it failValidate cube names against metadata
Member renamedQueries using old name failAlways discover member names from /v1/meta
Type changedMay affect parsing/displayCheck type field in metadata
